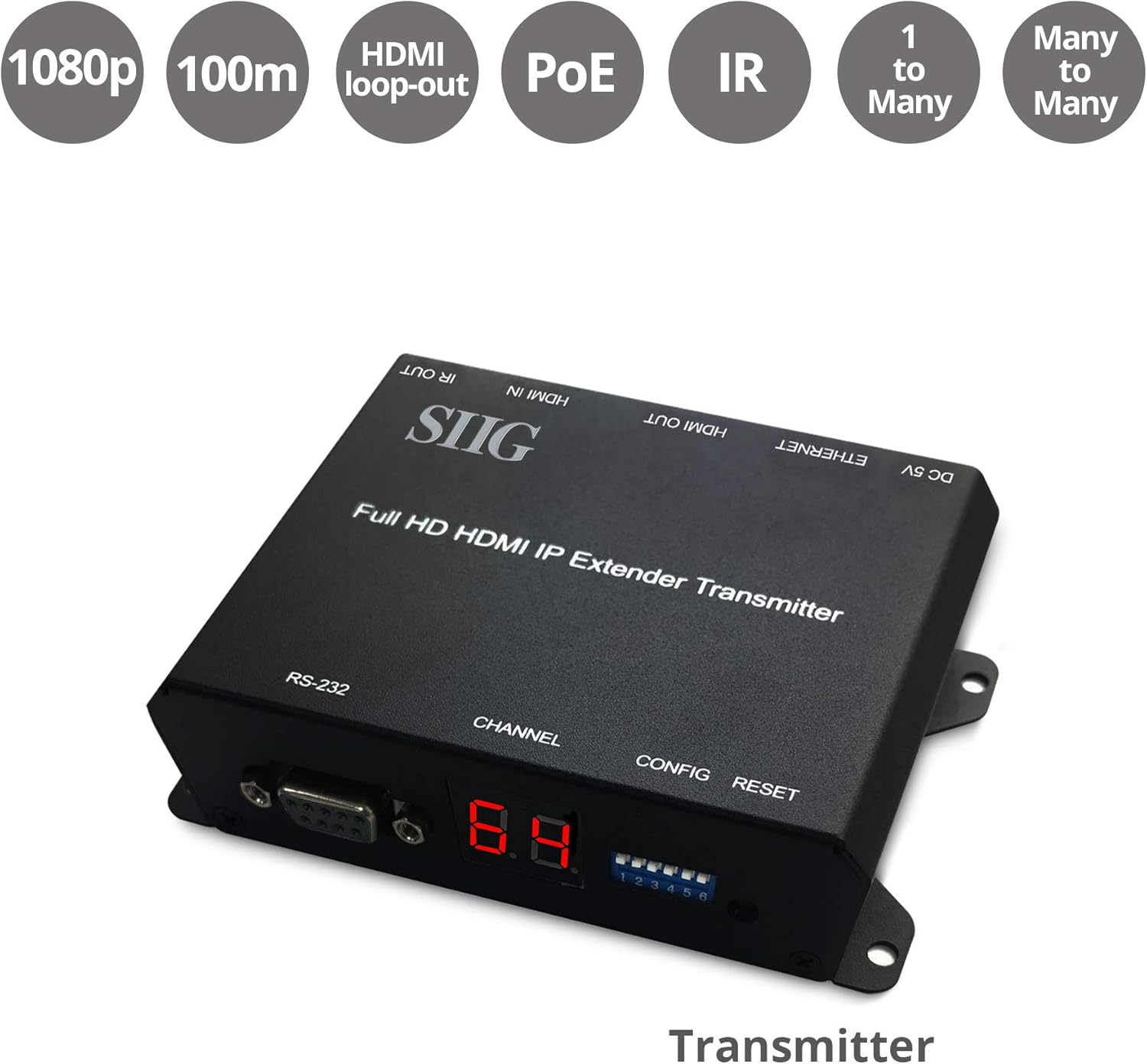

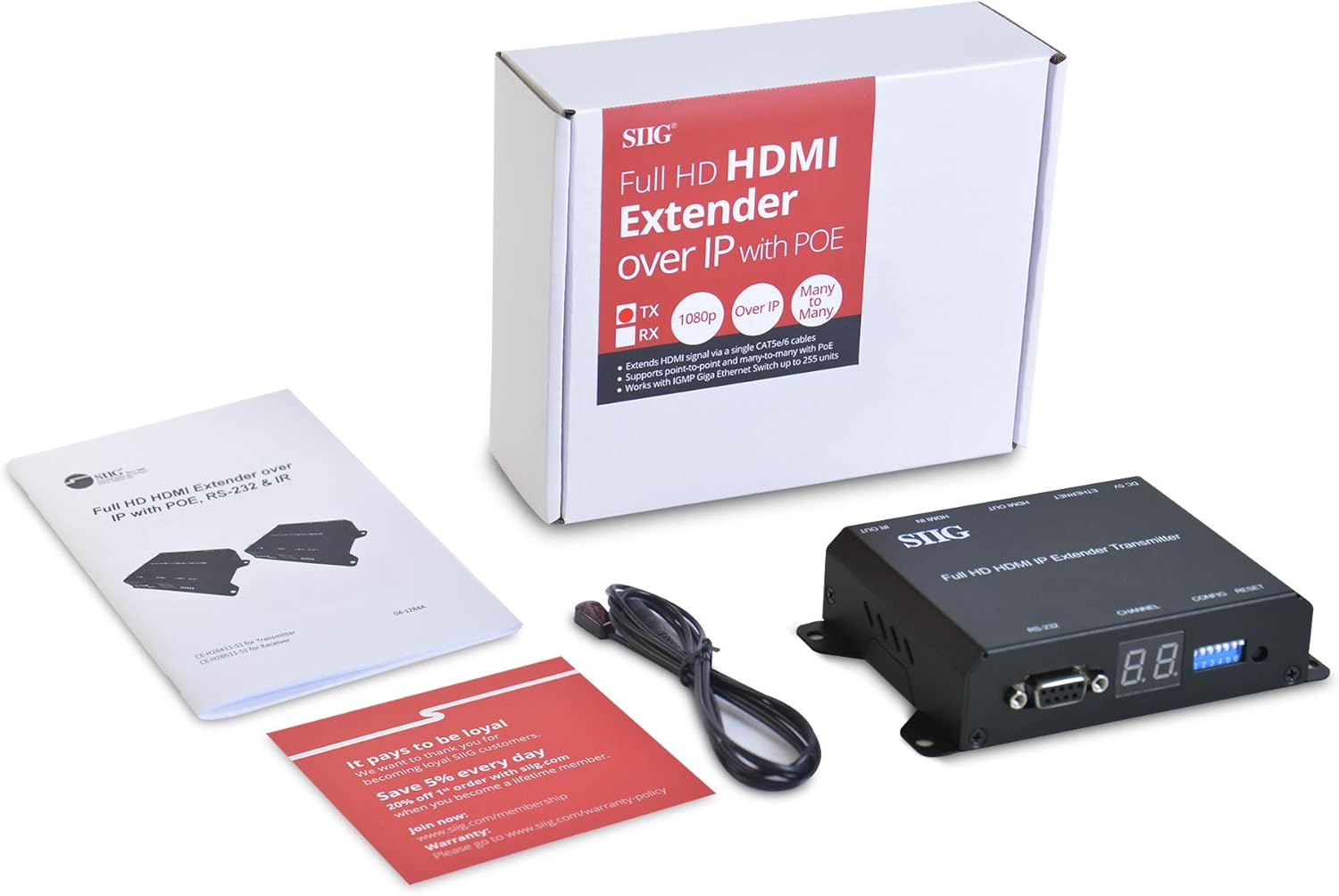

SIIG 1080p HDMI Extender Over IP with IR, RS-232, Local Loop Out -TX, Transmits HDMI Over PoE Network Switch,Matrix Configurable,Low Latency. RX Unit Sold Separately, TAA Compliant (CE-H26411-S1)
4.0 (144 items)
Limited Time SaleUS$108.25 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212334744 | Release Date | 2026/04/06 | List Price | US$72.16 | Model Number | 212334744 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Compliant with HDMI 1.3Video resolution: 1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50, 480i 60/50, 480p 60/50Video compression:H.264 compression video format Full HD encoder/ decoderMP3 compression audio format stereo 192Kbps encoder/ decoderMedia stream up to 18MbpsHDMI Audio: Stereo 192KbpsIP PROTOCOL: TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4LAN port: RJ-45 connector for 10/100 BASE-T Cat extensionSerial port: DB-9 RS-232 female connectorPower input: RJ-45, Power over Ethernet (PoE), 36V to 57V, 7W inESD protection: Air gap discharge +-8KV, contact discharged +- 4KVProduct:Dimensions: 5.12" (W) x 3.23" (H) x 1.19" (D)Weight: 0.64 lbsHousing material: Metal HousingHousing color: BlackConnectors:1x 19-pin HDMI, Type-A, Female, Input1x 19-pin HDMI, Type-A, Female, loop Output1x 8-pin RJ45, Output1x 3.5mm phone jack for IR1x 9-Pin RS-232 Serial1x 6-pin DIP Switch for channelPower jack: 5V/2A input, 5.5mm (OD) x 2.1mm (ID) x 10mm (D) (required with non-PoE Gigabit Switches or 1-to-1 (TX/RX) direct connection), power adapter purchase separatelyEnvironmental conditions:Operating temperature: 32 to 122 degrees FStorage temperature: 14 to 158 degrees FRelative humidity: 5% to 90% RH (non-condensing)Certifications/Standards: FCC, CE, RoHSCountry of origin: ChinaSystem Requirements:Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part number CE-H26511-S1, sold separatelyIGMP PoE Gigabit Switch recommended for best performance and reliabilityCat5e/6 cable using T568B wiring standard (Cat6 recommended)Power adapter, required with non-PoE Switches or direct TX-to-RX connection, purchase separately: Power plug dimensions: 5.5mm (OD) x 2.1mm (ID) x 10mm (L), Output: DC 5V/2A
- Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part# CE-H26511-S1, sold separately
- Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images & Local HDMI loop-out allows you to monitor the extended display from the source location
- IR pass back function controls the source device from remote RX location & Computer control software allows you to select and switch between source devices (Matrix mode only)
- Video protocol with H.264 compression over IP & Features MP3 audio compression and stereo 192Kbps encoder/ decoder
| UPC | 662774043685 |
|---|---|
| Brand | SIIG |
| Cable Type | HDMI |
| Unit Count | 1.0 Count |
| Item Weight | 10.24 ounces |
| Manufacturer | SIIG |
| Number of Ports | 1 |
| Compatible Devices | Monitor |
| Connector Type Used on Cable | HDMI |
